Full Kitset Price:

$8,497

(including GST)

Plus delivery direct to your property, for just $449

Flat rate New Zealand wide, excluding outer islands, (some conditions may apply).

Download Tech Brochure

Download this free PDF for plans & more details

Nook Cabin Kitset

Name: Nook Cabin Kitset - SheShed New Zealand
Brand: SheShed
SKU: NOO-T
Price: 8497 NZD
Availability: InStock

2m x 2.5m = 5 Square Metres

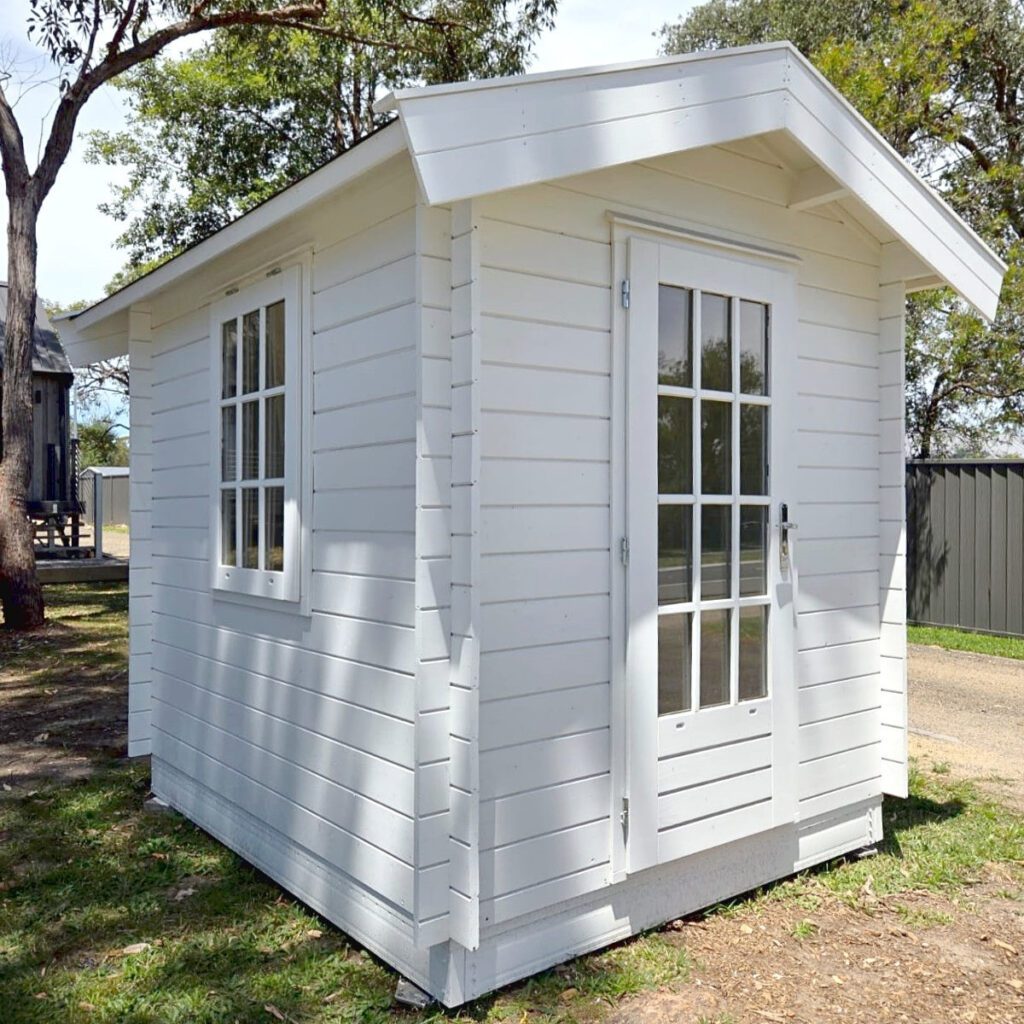

The Nook Cabin- a compact 5 m² timber kitset, perfect for a home office, sleepout, creative nook, or a backyard potting or storage shed. Built with treated 28mm thick Nordic spruce timber for durability, and features a double-glazed single door and top-hung window for light and ventilation. Supplied nationwide as an unpainted kitset, ready for your finishing touches before, during, or after assembly.

Specifications

Because we're all about those sweet details. (Click here to get down to the nitty-gritty!)

Shed Dimensions:

2m x 2.5m = 5 Square Metres

Height (External):

2.61 Metres

(Excluding foundation)

Wall Thickness:

28mm (Tongue & groove)

Timber Type:

Sustainably Sourced, Kiln-Dried, Nordic Spruce

Timber Treatment:

H3.2 Pressure Treatment (Tanalith-E, Copper-based)

Glass Glazing:

Double-Glazed

Roof Style:

Classic Apex/Gable

Roof Material:

Asphalt Shingle Tiles

Download the Technical Brochure for plans & more details

Structure Classification: This kitset cabin is designed to New Zealand Standards as a 7.0 Outbuilding structure. Upgrading this cabin to meet the requirement's of a Housing structure requires additional materials and work.

Inclusions

Your flatpack comes with everything you need - including the roof and floor!

Single Top-Hung Window
Treated timber | Double glazed | External frame dimensions: 880mm wide x 1265mm high | Opening dimensions: 715mm wide x 1085mm high. | sku: W44-T
Single Door
Pressure treated timber | Double glazed | Frame dimensions: | Door height: | sku: W45H-T
H3.2 Pressure Treated Timber (Tanalith-E)
Kiln dried, then pressure treated to an H3.2 level using Tanalith-E. Please note: All timber components must be properly painted for protection from the sun and weather.
PEFC certified sustainable forestry
Nordic Spruce, sustainably sourced from Sweden, Finland, and Latvia.
Asphalt Roofing Tiles
Asphalt tiles for roofing are durable, cost-effective, don't fade, and are DIY-friendly to install.
Hardware & Components
Includes all the nails, screws, handles, locks and other hardware required to assemble your kitset.
Comprehensive build instructions
We're always working on improving our build instructions; providing step-by-step illustrations, plans and photographs plus a detailed video overview of the process.
Build support available
We're available by phone and email (during business hours), to help support you and your builder during the construction of your kitset cabin. Happy customers who love their finished cabin make our world go around!

Warranty

Learn about our exceptional waranty and 5-star guarantee.

Enjoy our 5-Star Guarantee!

★ Exceptional build support - We make it easy!
★ Full kit supplied - Yes, It actually includes the roof & floor!
★ No delays, just delight - We strive to stock every size and style, for rapid delivery.
★ Easy to follow instructions for a DIYer - You won’t be pulling your hair out.
★ European quality and craftmanship - We care about the finish.

Click here for our warranty details plus our full terms and conditions.

Build Information

Everything you need to know to bring your DIY cabin dream to life.

• Skill Level: Suitable for DIY / Home handyman, but sound building knowledge or trade skills are also recommended.

• Estimated time to assemble kitset:

2-4 Days

(2 People are recommended).

Plan for additional time for site preparations like levelling the site and building a foundation or subfloor, as well as time afterwards to fully paint the finished cabin.

• Need a hand? Check out our list of recommended builders to find one in your area: CLICK HERE to Find A Builder (opens in a new tab).

• Tools & Equipment. Here's a list of the tools and equipment we recommend having on hand to assemble your kitset: CLICK HERE to see the tools (opens in a popup).

Optional Upgrades

Customise your cabin with extra windows, doors, sub-bases and more...

Additional Doors & Windows:

Treated Fixed Long Window for 28mm walls

sku: W24-28-T

$600

Fixed Long Window with double glazing and treated timber, 1935w x 340h to suit 28mm kitsets.

More Info Add to Order

Treated Casement Window for 28mm walls

sku: W21-28-T

$1,200

Casement Window with double glazing 1000w x 1140h to suit cabins with 28mm walls.

More Info Add to Order

Treated French Double Doors

sku: W24H-T

$1,900

Treated French Double Doors with double glazing 1210w x 1935h to suit 28mm kitsets

More Info Add to Order

Single Top-Hung Treated Window

sku: W44-28-T

$900

Single Top Hung French Window with double glazing. 700w x 1140h to suit 28mm kitsets

More Info Add to Order

Other Addons:

Steel Roof Kit for the Nook Cabin

sku: NOO-SRK

$2,230

Upgrade your asphalt roofing tiles to our NZ manufactured ColorSteel roofing kit, including the required battens, screws, flashings and even under-roof insulation. Steel roofing is a great option for higher wind zones and cases where you want to catch rain water.

Choose Options

70x Insulation Brackets for lining your Nook Cabin

sku: NOO-SLOT

$290

70 x Slotted metal brackets for the option of adding wall insulation and additional interior lining to your Cottage Garden Shed. If you need to fix vertical battens to the walls of your cabin, using slotted brackets allows for the natural expansion and contraction of the wall boards during changing weather and seasons, which is a critical component in helping to prevent unnecessary gaps or warping in the walls of your cabin.

More Info Add to Order

Roof Insulation Kit for your Nook cabin

sku: NOO-RIK

$1,200

A commercial grade roof insulation kit made from high-density 40mm insulation foam, especially made for installing underneath the asphalt roof tiles of your Cottage Garden Shed Kitset.

More Info Add to Order

Payment Options

Pay in full for immediate dispatch, or reserve your cabin with a 50% deposit. Finance options available.

Option One Pay in Full:

We strive to have all our cabins available in stock, so when you pay in full, we can dispatch your cabin almost immediately. (Usually on a truck and on it's way to you within 1-3 days!)

Option Two Pay a Deposit:

Paying a 50% deposit secures your cabin from our next available stock so you don’t miss out. You can then pay the remainder once you’re ready for delivery, or we can hold your order in stock for up to 2 months.

Option Three Get Finance:

You'll deal directly with your finance provider for what you need, then once approved, you can place your order with us over the phone or here on our website. We recommend talking to MTF Finance Richmond.

At the Checkout page you'll be given the following payment methods:

Pay via credit or debit card

Pay securely online with your Credit or Debit Card. (Please note a 1.5% surcharge applies for invoices over $15k)

Secured by Windcave:

Pay via direct bank transfer

Make your payment directly into our bank account in NZ dollars. Your order will not be shipped until the funds have cleared in our account. (Details provided after order is placed)

Pay a 50% Deposit

Secure cabin now for delayed delivery

Buy Now / Add to Order

Pay in full for quick delivery
